Online Free Chlorine analyzer (Constant voltage method)

Model No: DRXD-001

APPLICATIONS:Residual chlorine (hypochlorous acid)/chlorine dioxide/ozone, pH, temperature can be measured at the same time, widely used in tap water, secondary water supply, swimming pool, sewage disinfection, reverse osmosis treatment and other industries.

Products Categories

Description

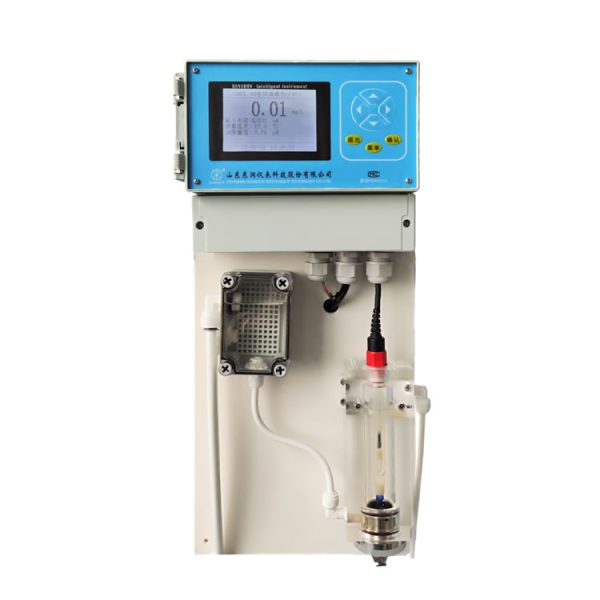

The DRXD-001 Online Free Chlorine analyzer (Constant voltage method) consists of a flow pool (embedded electrode module), a constant current system and a transmitter. The above components are jointly installed on the ABS panel, with a high degree of intelligence and flexibility, easy to install and integrate.



Technical specification

Sensor

Measurement method constant voltage three electrode measurement, with temperature, pH compensation
Measuring range & accuracy

(Residual chlorine)



0-1mg/L (±0.02mg /L or ±5% MAX),
1-3mg/L (±0.05mg /L or ±5%FS),
3-5mg/L (±0.2mg /L or ±5%FS), .
Compensation range temperature 0 ~ 40℃ pH 6.0 ~ 8.5
Response time < 1min, T90
Circulation pool material organic glass
Working pressure 0.15 ~ 3bar
Allowable flow rate 0.5 ~ 2L/min
Ambient temperature -10 ~ 50℃
Water sample temperature 5 ~ 45℃
Cleaning function unique electrochemical + mechanical automatic cleaning

Transmitter

Resolution 0.01mg/L
Analog output Optional 2 channels 4 ~ 20mA, loop load 500Ω
Digital output one RS485 Modbus communication protocol for optional
Control output Optional 2-way alarm relay and 1-way cleaning relay (250VAC\10A)
Display 240×160 graphic lattice backlight liquid crystal, with LED
Ambient temperature -10 ~ 55℃
Relative humidity 5% ~ 90%, no condensation
Protection level IP65
Shell material Polycarbonate (PC)
Power supply 220VAC, 50Hz, 20W Standard,24VDC±10%, 20W is optional
Installation mode wall-hanging installation
Size 234/185/118mm, L/W/H
Weight 1.5kg
